MIL-PRF-24775A(SH)
TOP
BOTTOM
Physical layout 1/
Dimensions (in)
Approx. unit
Unit size
weight (lb) 2/
A
B
C
1
25
10
50
275
2
25
10
50
285
3
27
14
52
350
4
36
14
52
420
5
44
14
52
500
6
39
17
52
500
7
52
17
52
660
8
62
17
52
780
Notes:
1/
Cooling coil shall be field reversible to allow left or right-hand connection. Right-hand connections shall be
standard, unless left-hand is required by 6.2.
2/
Maximum gross weight in pounds (lb) with water filled cooling coil and largest electric heater as specified in
Table I, installed.

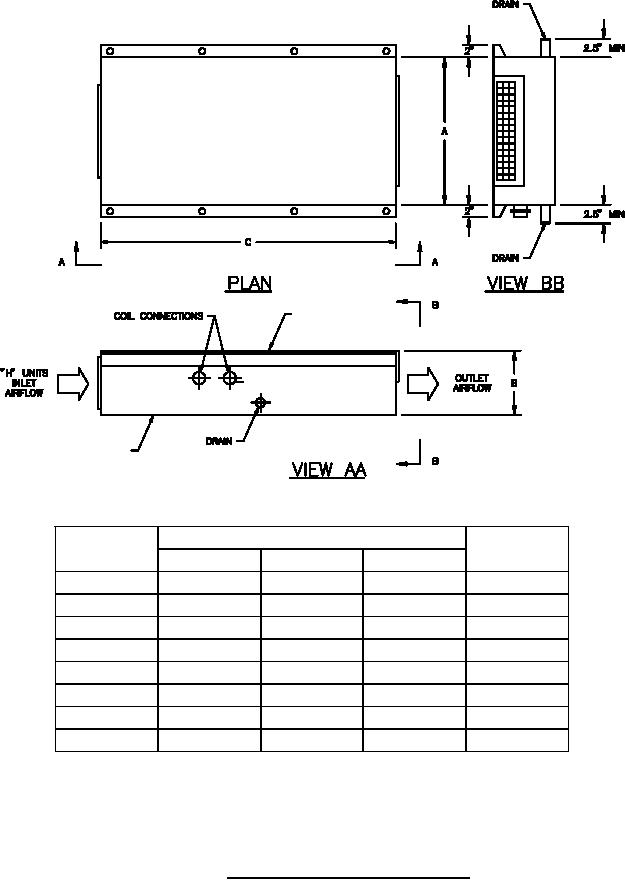

FIGURE 3. Fan-coil unit interface and physical data.
